Product Information
The Maxxi Korea Pro-EVOTIG 3000P Compact DC TIG Welder has a broad welding ampere range of 10-230amp. It designed in Single Phase(380/415volt) heavy duty, portable, more reliable. The design rugged package and completed with flexible Carrier Belt, its provided flexibility for highest job site.
DYNAWELD ADVANTAGES
- Lightweight at 19kgs (41.8lbs), rugged package for ultimate portability and durability.
- Adjustable Pulse Current Control makes that easy to gain even greater heat control on thinnest material.
- Pulse width control, easy to control the width of the welding space for deference kind of welding application.
- 2T/4T Manual and Auto welding function; it's provided flexibility for long and difficult jobs.
- Overload protection for long life of the components.
- (CE) standard.
- Backed by One year Dynaweld manufacturing warranty.
PROCESS
- Stick Welding
- Scratch start DC TIG Welding
BASIC UNIT INCLUDES

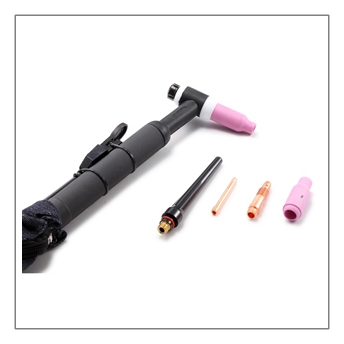

- TG26R-25 WP-26R TIG TORCH.

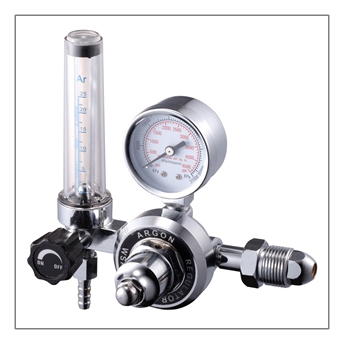

- GR-AR Dynaweld argon gas regulator with flow meter.
Specifications
| Input Voltage | 380/415Vac ± 15% 3P |
| Input Current | 8.3Kw (12.6A) |
| Output Current | 10-300A |
| Output Voltage | 23Vdc |
| Duty Cycle | 60% |
| Dimension (mm) | 400x200x360 |
| Weight | 19Kgs |
| Material Thickness | 0.4-15.0mm |
| Product Code | WM-EVOTIG 3000P |
| Input voltage | 380/415Vac ± 15% 3P |
| Input current (A) | 12.6 |
| Output current (A) | 10-300 |
| Output voltage | 23 Vdc. |
| Duty cycle | 60% |
| Weight (kg) | 19 |
| Electrode size (mm) | 0.4-15.00 |
| Dimension (mm) | 490 x 200 x 360 |
| Product Code | WM-EVOTIG 3000P |
BASIC UNIT INCLUDES
- Owner instruction guide.
- Input power cable with insulated plug.
- Professional hand carries belt.
